> Family SFERA

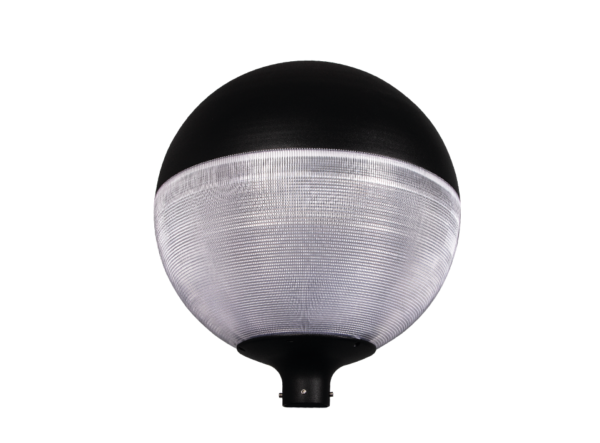

SFERA 12L 18/18,8W 730 VA00L1M 8N DA CMR
569774
Applications
Parks
Residential Areas
Pedestrian Zones
Cycle lanes
Car parks
SKU data sheet
SKU photometry
Model data sheet
Model photometry
| 569774 | 18 | 18,8 | 500 | 3163 | 2965 | 1750 | 93 | 12 |
Features
Assembly
Download
Features
Electrical data
Voltage (V) |
220-240V |
Frecuency (Hz) |
50/60Hz |
Current (mA) |
500mA |
Power factor (Cos fi) |
0,94 |
LED number |
12 |
Dimming |
NO |
Dimensions and Mounting
Mounting |
Montaje en Brazo,Montaje en Poste |
Wind Resistance |
0,196m2 |
Weight |
0.0078Kg |
Measures |
0x0x0mm |
Mounting position |
Montaje en Brazo,Montaje en Poste |
Linkable |
NO |
Lighting |
Directa |
Optical data
Colour temperature |
3000K |
CRI Colour rendering index |
70 |
Optical |
VA00L1M |
Higher Hemispheric Flow |
10 |
Housing and Finish
IK Impact resistance |
IK08 |
Body color |
9005 |
Body |
AL iap |
Performance
Flux (lm) |
1750lm |
Life
Lifetime |
L90B10>200000h |
Funcionament condition
Operating temperature |
35 |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCI |
Assembly
Dimensions and Mounting
Mounting |
Montaje en Brazo,Montaje en Poste |
Wind Resistance |
0,196m2 |
Weight |
0.0078Kg |
Measures |
0x0x0mm |
Mounting position |
Montaje en Brazo,Montaje en Poste |
Linkable |
NO |
Lighting |
Directa |
