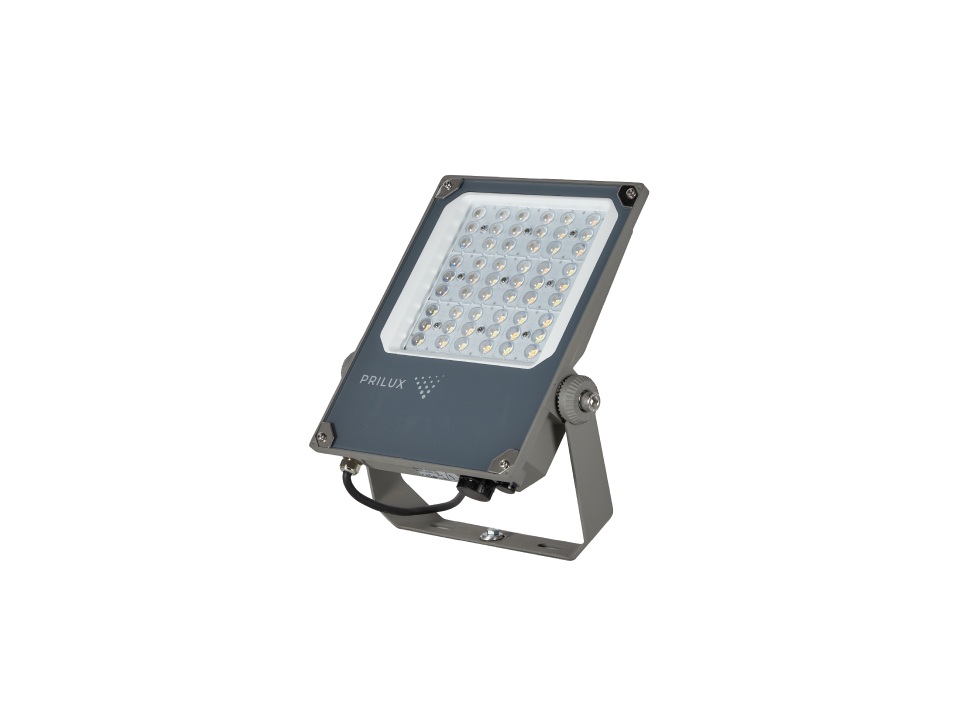

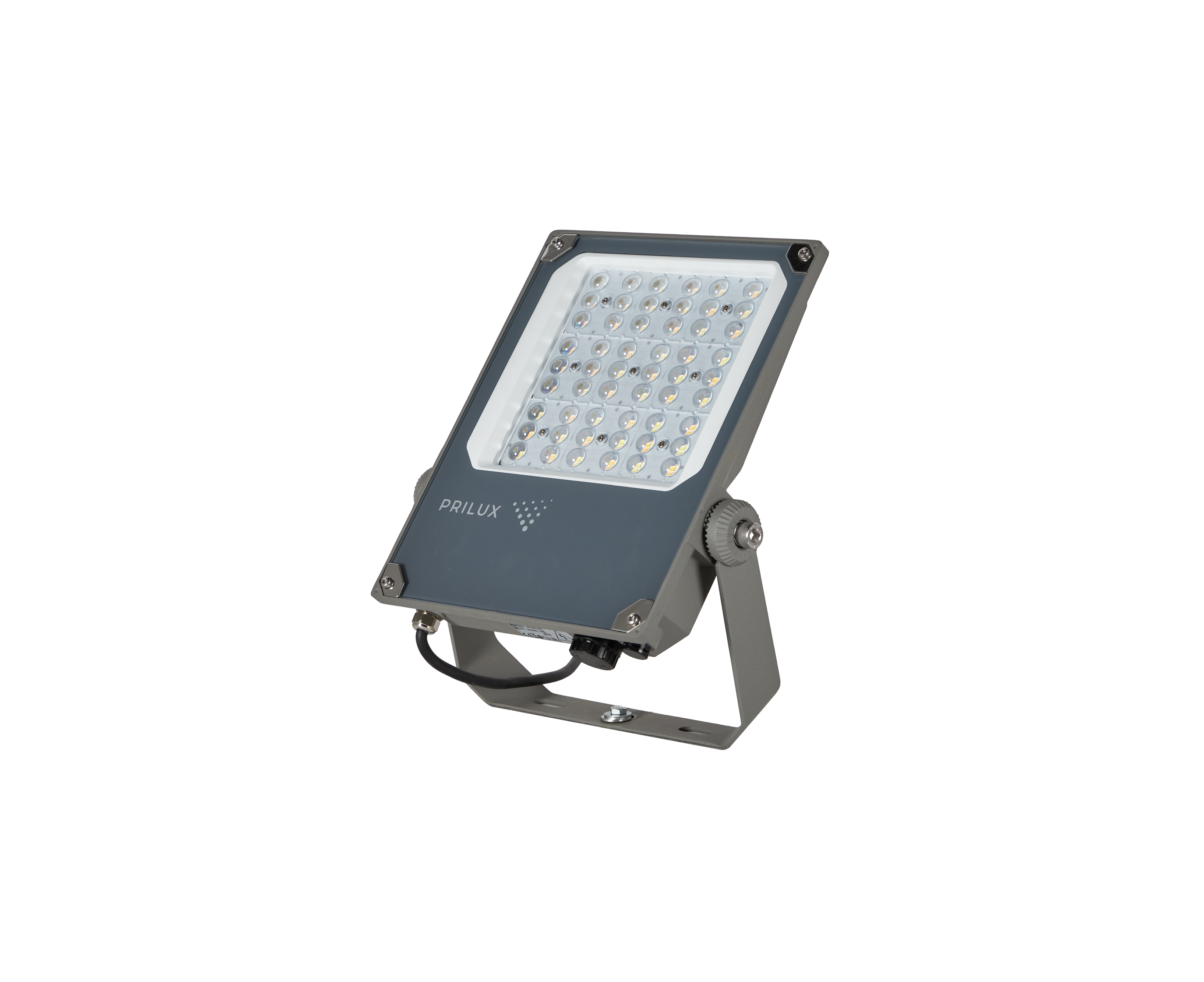

AKAGY SWITCH 100W 3000-5000K 100-240 90º IP65 9007
638944
Applications
Sports grounds
Industrial perimeters
Port Areas
Pedestrian Zones
Signage
Home
Gardens
SKU data sheet
Model data sheet
| 638944 | 50/80/100 | 7.300~15.000 | 3000K/4000K/5000K | RAL9007 | 274 x 346 x 53 |
Features
Assembly
Download
Features
Electrical data
Voltage (V) |
100-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
540mA |
Power factor (Cos fi) |
≥0,9 |
Dimming |
NO |

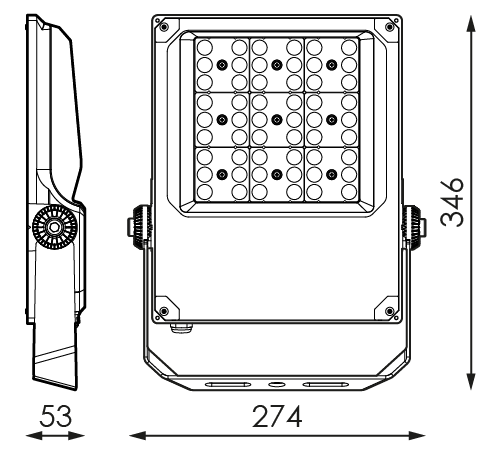

Dimensions and Mounting
Measures |
274 x 346 x 53mm |
Mounting position |
Surface |
Linkable |
NO |
Optical data
Colour temperature |
3000K/4000K/5000K |
CRI Colour rendering index |
70 |
Opening angle |
90 |
Housing and Finish
IK Impact resistance |
IK08 |
IP Tightness index |
IP65 |
Body color |
RAL9007 |
Body |
AL |
Performance
Flux (lm) |
7.300~15.000lm |
Life
Lifetime |
(L70B50>)50.000h |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCI |
Assembly
Dimensions and Mounting
Measures |
274 x 346 x 53mm |
Mounting position |
Surface |
Linkable |
NO |
