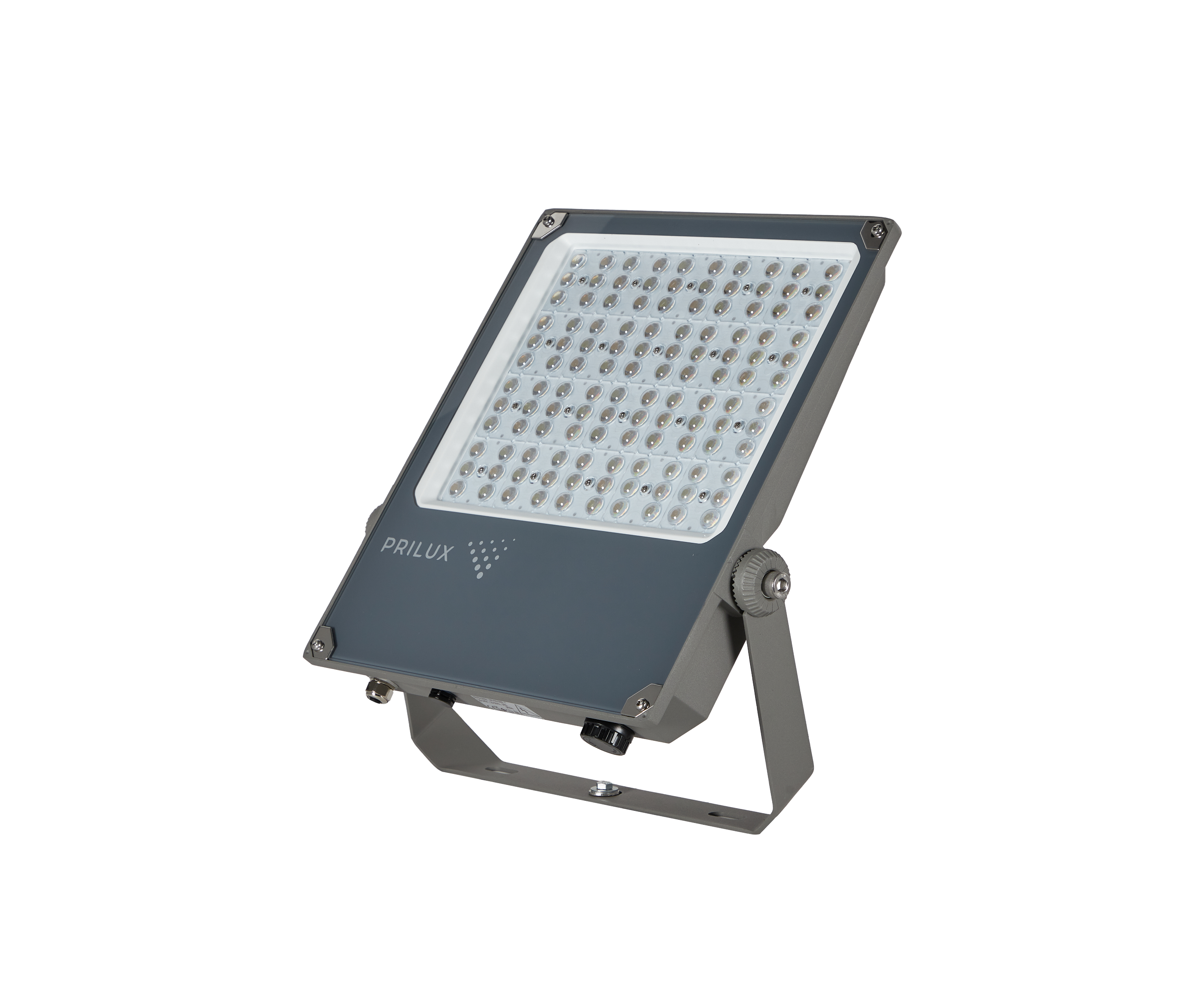

AKAGY SWITCH 300W 3000-5000K 100-240 90º IP65 9007
638968
Applications
Sports grounds
Industrial perimeters
Port Areas
Pedestrian Zones
Signage
Home
Gardens
SKU data sheet
Model data sheet
| 638968 | 150/200/300 | 22.300~45.000 | 3000K/4000K/5000K | RAL9007 | 420 x 488 x 57 |
Features
Assembly
Download
Features
Electrical data
Voltage (V) |
100-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
1600mA |
Power factor (Cos fi) |
≥0,9 |
Dimming |
NO |

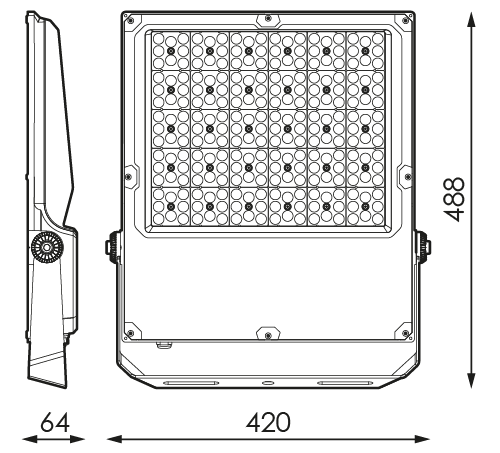

Dimensions and Mounting
Measures |
420 x 488 x 57mm |
Mounting position |
Surface |
Linkable |
NO |
Optical data
Colour temperature |
3000K/4000K/5000K |
CRI Colour rendering index |
70 |
Opening angle |
90 |
Housing and Finish
IK Impact resistance |
IK08 |
IP Tightness index |
IP65 |
Body color |
RAL9007 |
Body |
AL |
Performance
Flux (lm) |
22.300~45.000lm |
Life
Lifetime |
(L70B50>)50.000h |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCI |
Assembly
Dimensions and Mounting
Measures |
420 x 488 x 57mm |
Mounting position |
Surface |
Linkable |
NO |
