> Family ASTRANI

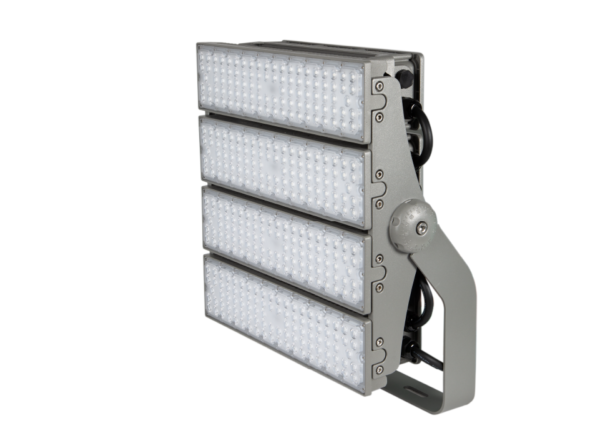

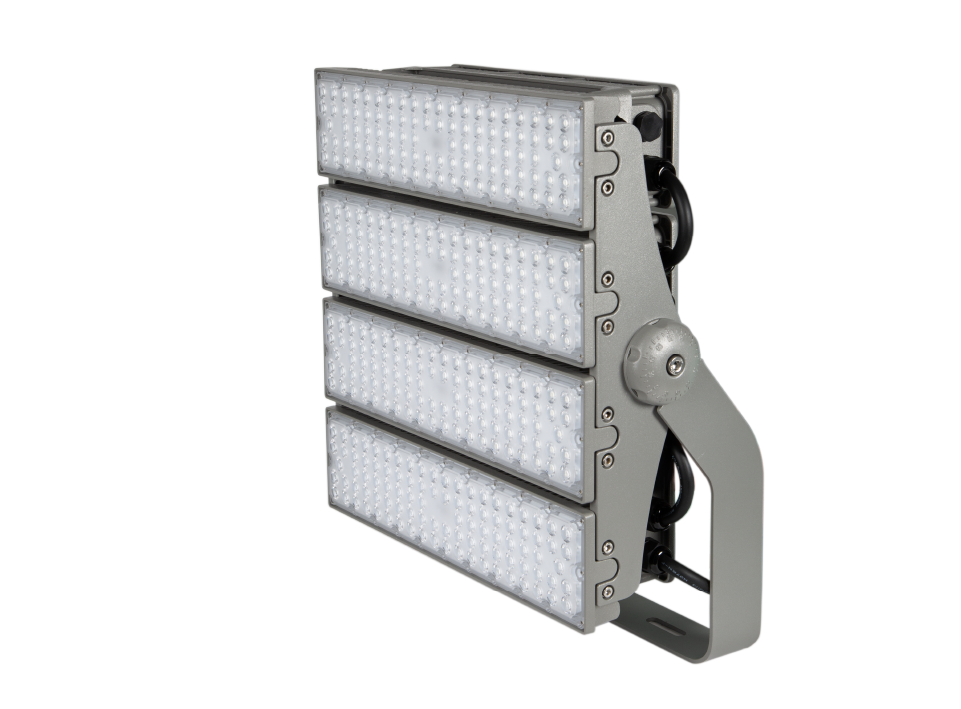

ASTRANI 4X96L 800W 740 100-277V 30º IP66 9007 DALI
679305
Applications
Sports grounds
Industrial Zones
Port Areas
Signage
SKU data sheet
SKU photometry
Model data sheet
Model photometry
| 679305 | 800 | 118860 | 4000K | 9007AS-T | 470x198x520 |
Features
Assembly
Download
Under request
Features
Electrical data
Voltage (V) |
100-277VacV |
Frecuency (Hz) |
50/60Hz |
Current (mA) |
4000mA |
Power factor (Cos fi) |
>0,95 |
LED number |
384 |
Dimming |
YES |
Dimensions and Mounting
Weight |
0.020739999999999998Kg |
Measures |
470x198x520mm |
Mounting position |
Montaje en Lira |
Inclination |
180º |
Linkable |
NO |
Lighting |
Directa |
Optical data
Colour temperature |
4000K |
CRI Colour rendering index |
70 |
Opening angle |
30 |
Housing and Finish
IK Impact resistance |
IK09 |
IP Tightness index |
IP66 |
Body color |
9007AS-T |
Body |
AL iap |
Performance
Flux (lm) |
118860lm |
Life
Lifetime |
L90B10>100000h |
Funcionament condition
Operating temperature |
50 |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCI |
Assembly
Dimensions and Mounting
Weight |
0.020739999999999998Kg |
Measures |
470x198x520mm |
Mounting position |
Montaje en Lira |
Inclination |
180º |
Linkable |
NO |
Lighting |
Directa |
