> Family BERLIN AVANT

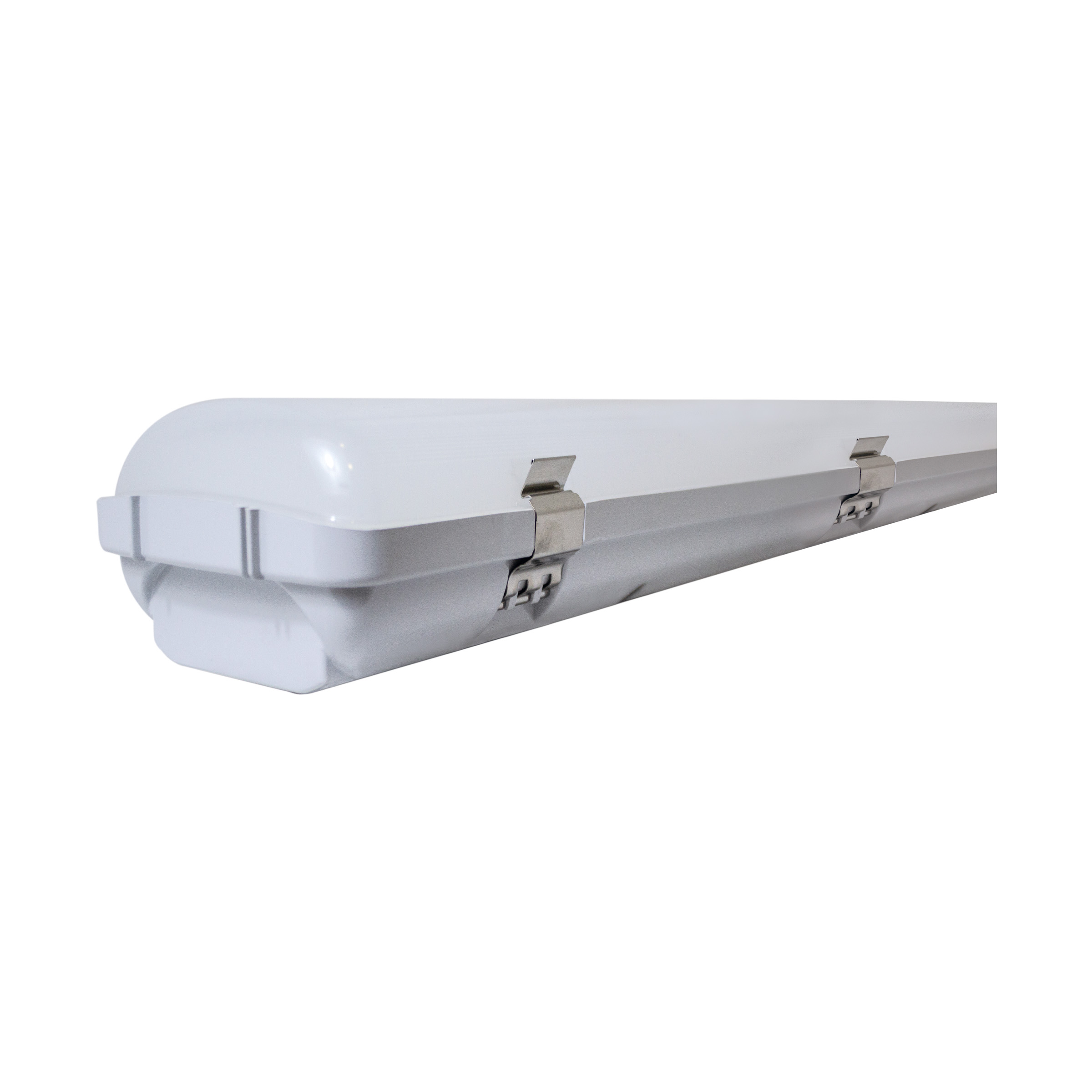

BERLIN AVANT 1X 1X13W 350MA 850 60CM
550444
Applications
Covered car parks
Large surfaces
SKU data sheet
Model data sheet
| 550444 | 1 x13 | 15 | 350 | 1.795 | 1.581 | 24 | 5.000K | >80 | 1x -660x85x88 |
Features
Assembly
Download
Under request
Features
Electrical data
Voltage (V) |
220-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
350mA |
Power factor (Cos fi) |
0,9 |
LED number |
24 |
Dimming |
NO |
Dimensions and Mounting
Weight |
2.6Kg |
Measures |
1x -660x85x88mm |
Mounting position |
Surface |
Linkable |
NO |
Power supply |
No incluida |
Lighting |
Directa |
Optical data
Colour temperature |
5.000K |
CRI Colour rendering index |
>80 |
Housing and Finish
IK Impact resistance |
IK08 |
IP Tightness index |
IP65 |
Body color |
Light grey |
Body |
PC |
Performance
Flux (lm) |
1.581lm |
Life
Lifetime |
L70B10>50.000h |
Lifetime |
L70B10>50.000h |
Funcionament condition
Operating temperature |
-20~+35ºC |
Protections
Surges protection |
YES |
General data
Electrical isolation |
CI |
Assembly
Dimensions and Mounting
Weight |
2.6Kg |
Measures |
1x -660x85x88mm |
Mounting position |
Surface |
Linkable |
NO |
Power supply |
No incluida |
Lighting |
Directa |
Download
Under request
Regulation 1-10V
>80 4.000K
