> Family BERLIN HE

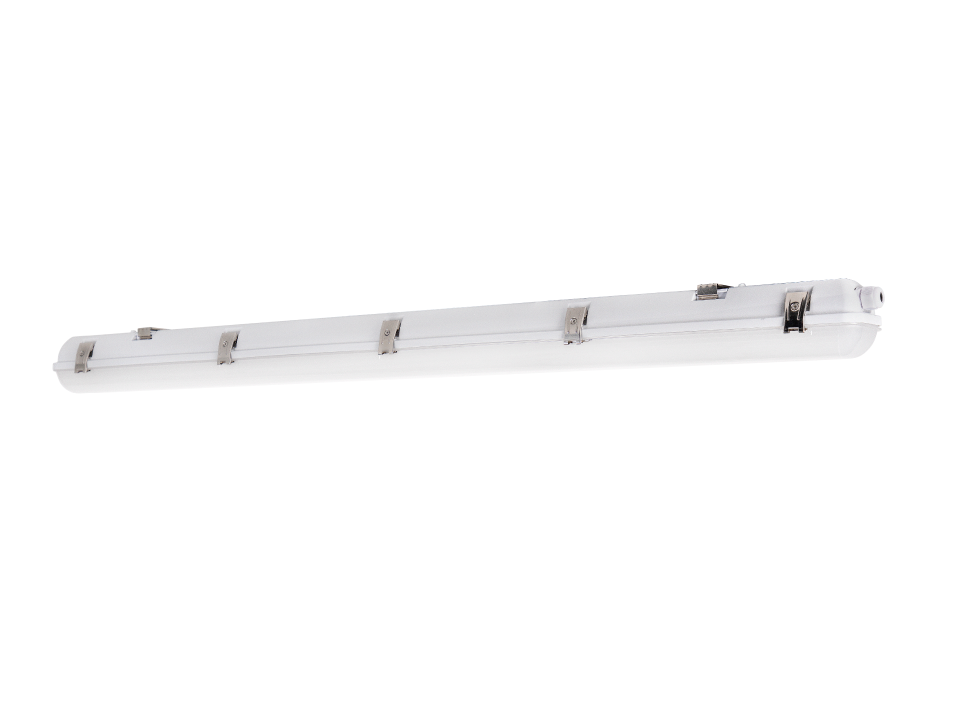

BERLIN HE 2X24/51,0W 300MA 840 150CM
525053
Applications
Industry/Logistics
Covered car parks
Large surfaces
SKU data sheet
SKU photometry
Model data sheet
Model photometry
| 525053 | 2×24 | 51 | 300 | 9.223 | 7.655 | 150 | 360 | 4.000K | >80 | 1.565 x 82 x 87 |
Features
Assembly
Download
Under request
Features
Electrical data
Voltage (V) |
220-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
300mA |
Power factor (Cos fi) |
0,95 |
LED number |
360 |
Dimming |
NO |
Dimensions and Mounting
Mounting |
Surface |
Weight |
2.7Kg |
Measures |
1.565 x 82 x 87mm |
Mounting position |
Superficie/Suspendido |
Linkable |
NO |
Optical data
Colour temperature |
4.000K |
CRI Colour rendering index |
>80 |
Housing and Finish
IK Impact resistance |
IK10 |
IP Tightness index |
IP66 |
Body color |
Light grey |
Body |
PC |
Performance
Flux (lm) |
7.655lm |
Life
Lifetime |
L90B10>200000h |
Funcionament condition
Operating temperature |
-20ºC |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCI |
Assembly
Dimensions and Mounting
Mounting |
Surface |
Weight |
2.7Kg |
Measures |
1.565 x 82 x 87mm |
Mounting position |
Superficie/Suspendido |
Linkable |
NO |
Download
Under request
Emergency kit 3h (mod. 1x/2x 1.200mm/1.500mm)
Cableado Pasante
Dali
>80 4.000K
Presence and brightness sensor (mod. 1x/2x 1.200mm/1.500mm)
