> Family DACIL
DACIL SWITCH CCT 840-865 20W 600MM IP65 DALI
521031
Applications
Industry/Logistics
Covered car parks
Industrial Zones
SKU data sheet
SKU photometry
Model data sheet
Model photometry
| 521031 | 20 | 18 | 2.943/3.090 | 2.414/2.533 | 4.000K / 6.500K | >80 | 600x84x71 |
Features
Assembly
Download
Features
Electrical data
Voltage (V) |
230V |
Frecuency (Hz) |
50-60Hz |
Power factor (Cos fi) |
0.9 |
Dimming |
YES |

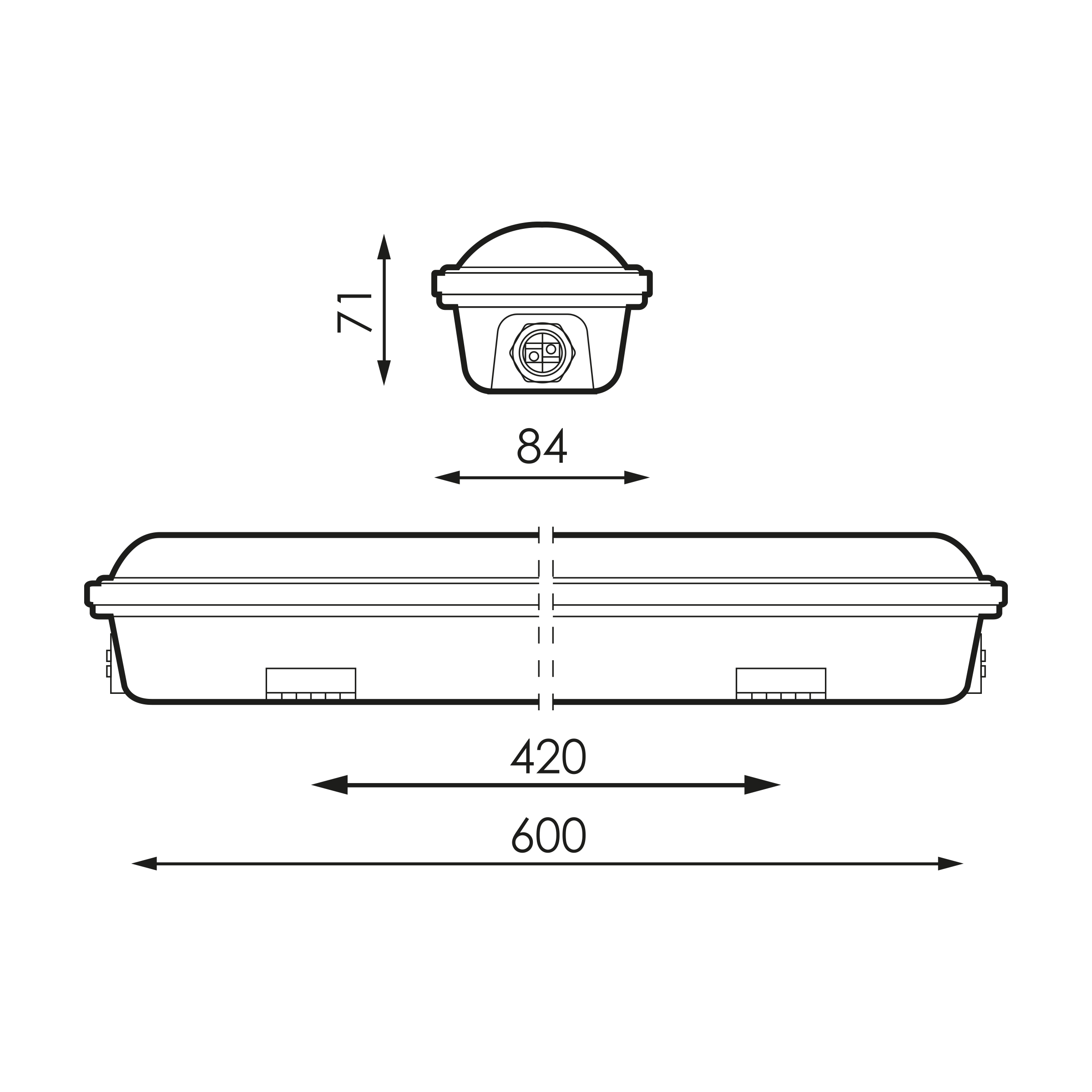

Dimensions and Mounting
Weight |
0.68Kg |
Measures |
600x84x71mm |
Mounting position |
Surface |
Linkable |
NO |
Lighting |
Directa |
Optical data
Colour temperature |
4.000K / 6.500K |
CRI Colour rendering index |
>80 |
Housing and Finish
IK Impact resistance |
IK07 |
IP Tightness index |
IP65 |
Body color |
White |
Body |
PC |
Performance
Flux (lm) |
2.414/2.533lm |
Life
Lifetime |
(L70B50>) 50.000h |
Funcionament condition
Operating temperature |
-10ºC~+35 ºC |
Protections
Surges protection |
YES |
General data
Electrical isolation |
CII |
Assembly
Dimensions and Mounting
Weight |
0.68Kg |
Measures |
600x84x71mm |
Mounting position |
Surface |
Linkable |
NO |
Lighting |
Directa |
