> Family DACIL

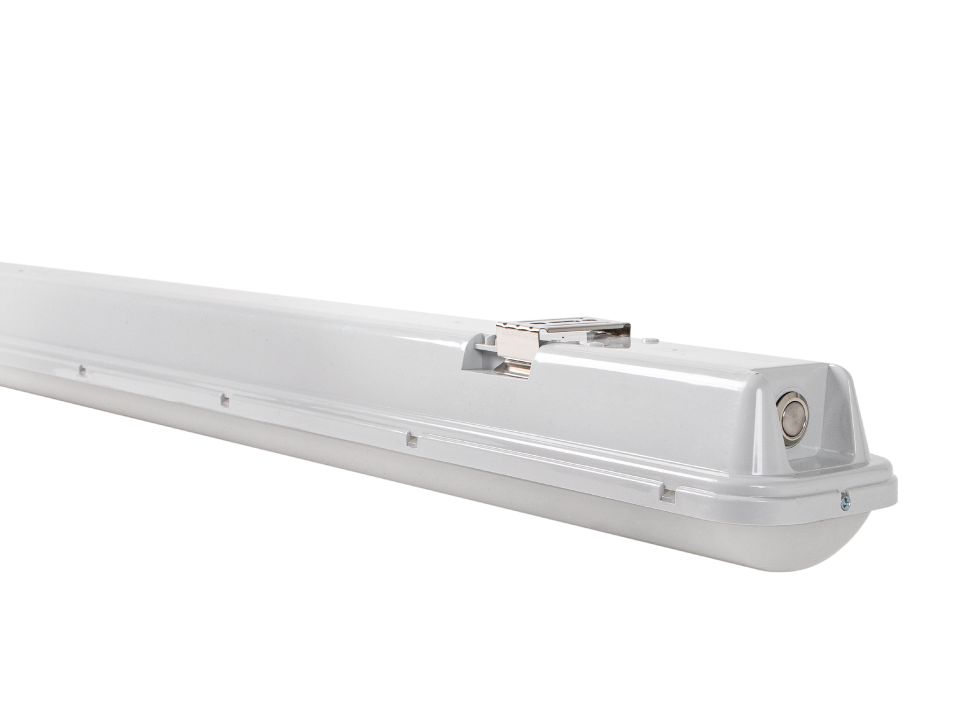

DACIL SWITCH CCT 840-865 60W 1500MM IP65 DALI
521055
Applications
Industry/Logistics
Covered car parks
Industrial Zones
SKU data sheet
SKU photometry
Model data sheet
Model photometry
| 521055 | 60 | 57 | 7.965/8.364 | 6.534/6.858 | 4.000K / 6.500K | >80 | 1.500x84x71 |
Features
Assembly
Download
Features
Electrical data
Voltage (V) |
230V |
Frecuency (Hz) |
50-60Hz |
Power factor (Cos fi) |
0.9 |
Dimming |
YES |

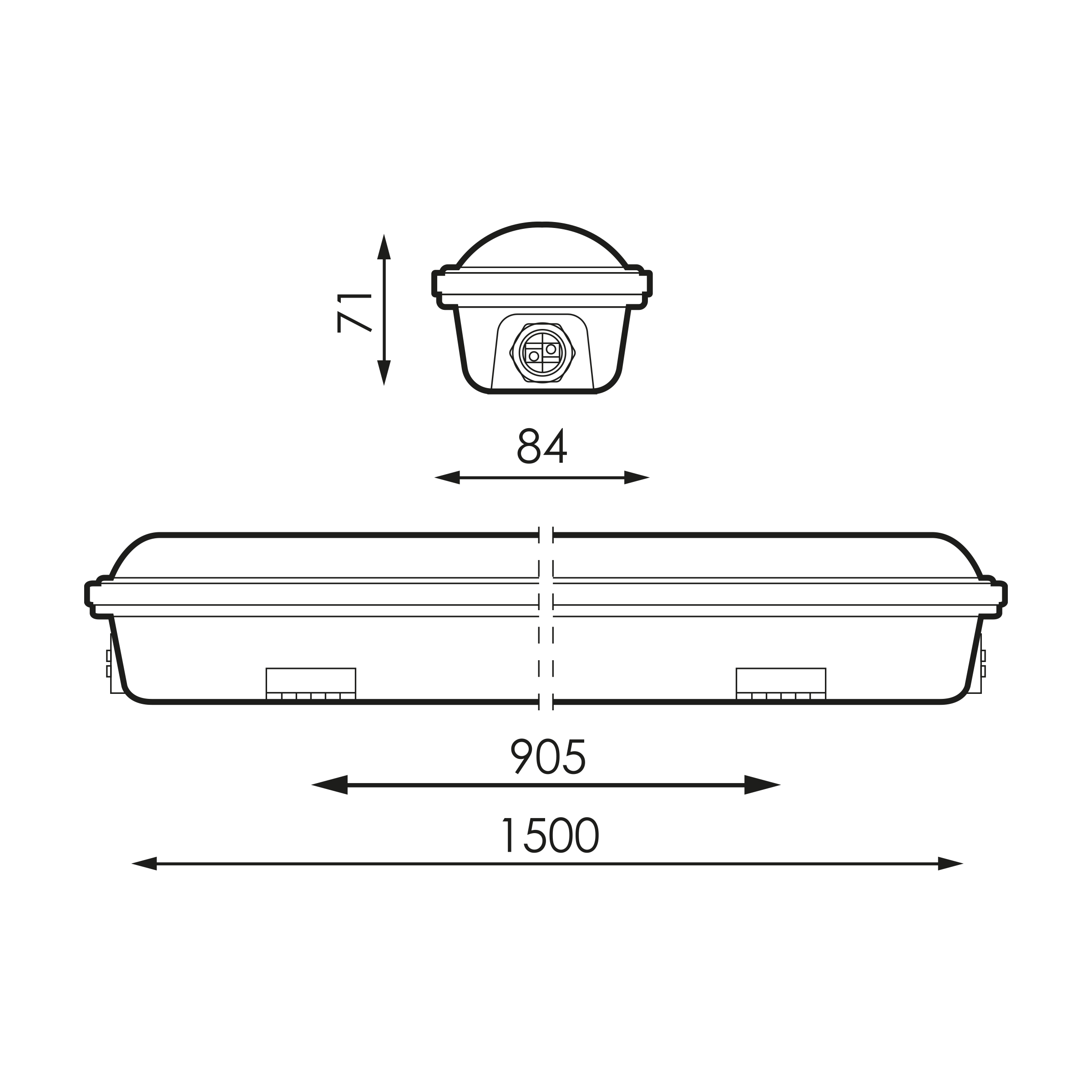

Dimensions and Mounting
Weight |
1.71Kg |
Measures |
1.500x84x71mm |
Mounting position |
Surface |
Linkable |
NO |
Lighting |
Directa |
Optical data
Colour temperature |
4.000K / 6.500K |
CRI Colour rendering index |
>80 |
Housing and Finish
IK Impact resistance |
IK07 |
IP Tightness index |
IP65 |
Body color |
White |
Body |
PC |
Performance
Flux (lm) |
6.534/6.858lm |
Life
Lifetime |
(L70B50>) 50.000h |
Funcionament condition
Operating temperature |
-10ºC~+35 ºC |
Protections
Surges protection |
YES |
General data
Electrical isolation |
CII |
Assembly
Dimensions and Mounting
Weight |
1.71Kg |
Measures |
1.500x84x71mm |
Mounting position |
Surface |
Linkable |
NO |
Lighting |
Directa |
