> Family TANEK

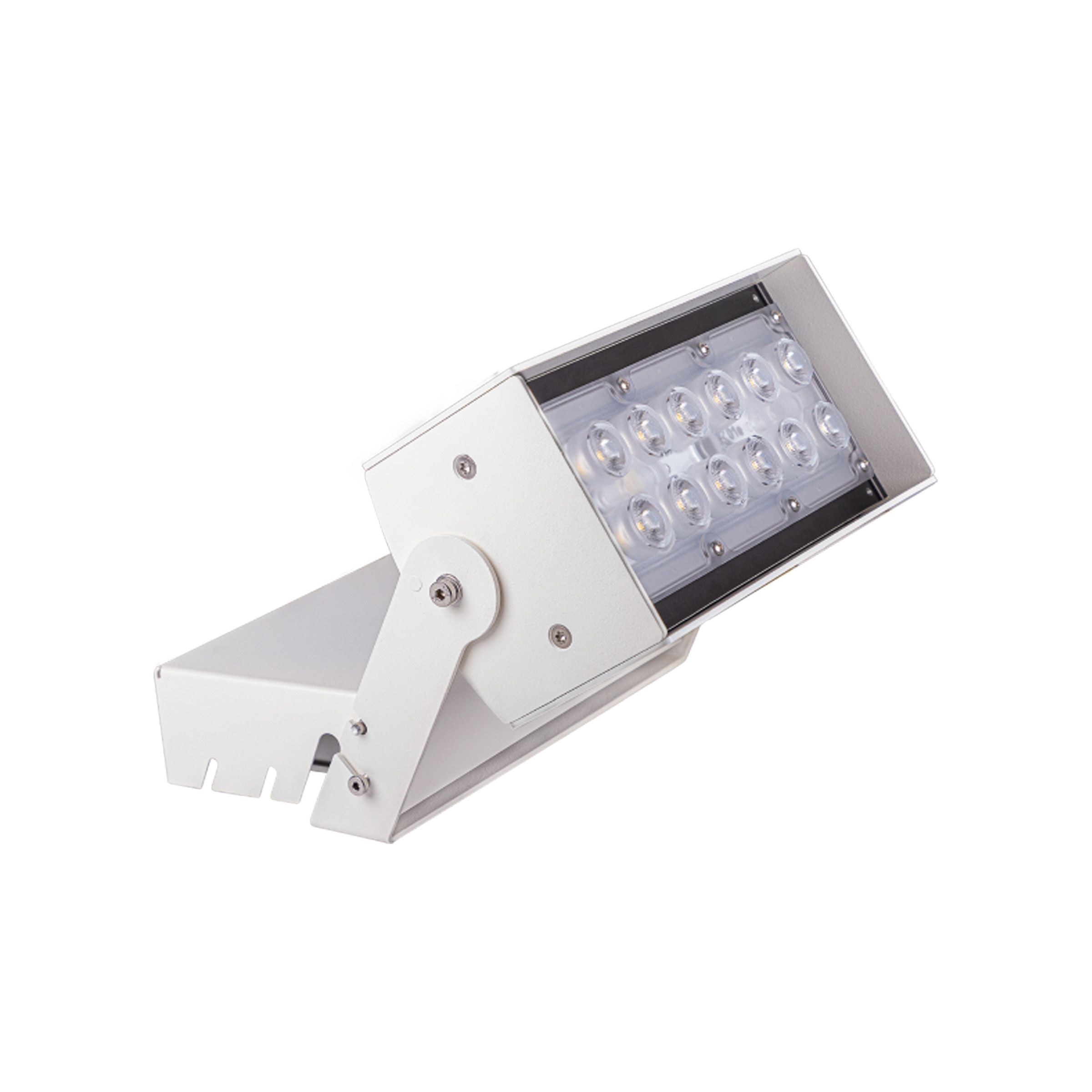

G.O. TANEK ARQ 12LED 740 S027I1P RAL9010
481984
Applications
Monuments
Fairgrounds
Facades
Historic buildings
Cultural spaces
SKU data sheet
SKU photometry
Model photometry
| 481984 | 52 máx. | 1400 | 6.892 | 5.719 | 12 | S027L0P | NO |
Features
Assembly
Download
Accessories
Under request
Features
Electrical data
Voltage (V) |
220-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
1400mA |
Power factor (Cos fi) |
0,98 |
LED number |
12 |
Dimming |
NO |
Dimensions and Mounting
Wind Resistance |
0,018m2 |
Weight |
1.8Kg |
Measures |
215x140x120mm |
Linkable |
NO |
Lighting |
Directa |
Optical data
Colour temperature |
4.000K |
CRI Colour rendering index |
>70 |
Optical |
S027L0P |
Housing and Finish
IK Impact resistance |
IK10 |
IP Tightness index |
IP67 |
Body |
FE |
Performance
Flux (lm) |
5.719lm |
Life
Lifetime |
L90B10>200.000h |
Funcionament condition
Operating temperature |
-40~+40ºC |
Protections
Surges protection |
YES |
General data
Electrical isolation |
CI |
Assembly
Dimensions and Mounting
Wind Resistance |
0,018m2 |
Weight |
1.8Kg |
Measures |
215x140x120mm |
Linkable |
NO |
Lighting |
Directa |
Download
Accessories
Filters
Sort results
Reset
Apply
Product | Name | SKU |
|---|---|---|
 |
ACCES. GRID PARALUMEN TANEK ARQ |
480246 |
 |
ACCES. SUPPORT BOX TANEK ARQ REMOTE |
480635 |
 |
ACCESS. 2P TANEK ARCH CONNECTOR |
480291 |
|
ACCESS. 3P TANEK ARCH CONNECTOR |
480307 |
 |
ACCESS. VERTICAL PARALUMEN TANEK ARQ |
480253 |
 |
CONNECTION KIT TANEK ARCH REMOTE 5M |
480260 |
|
TANEK ARCH REMOTE CONNECTION KIT 10M |
480277 |
Under request
>70 3.000K
>70 5.000K
>80 3.000K
>80 4.000K
>80 4.000K
