> Family KENTAU

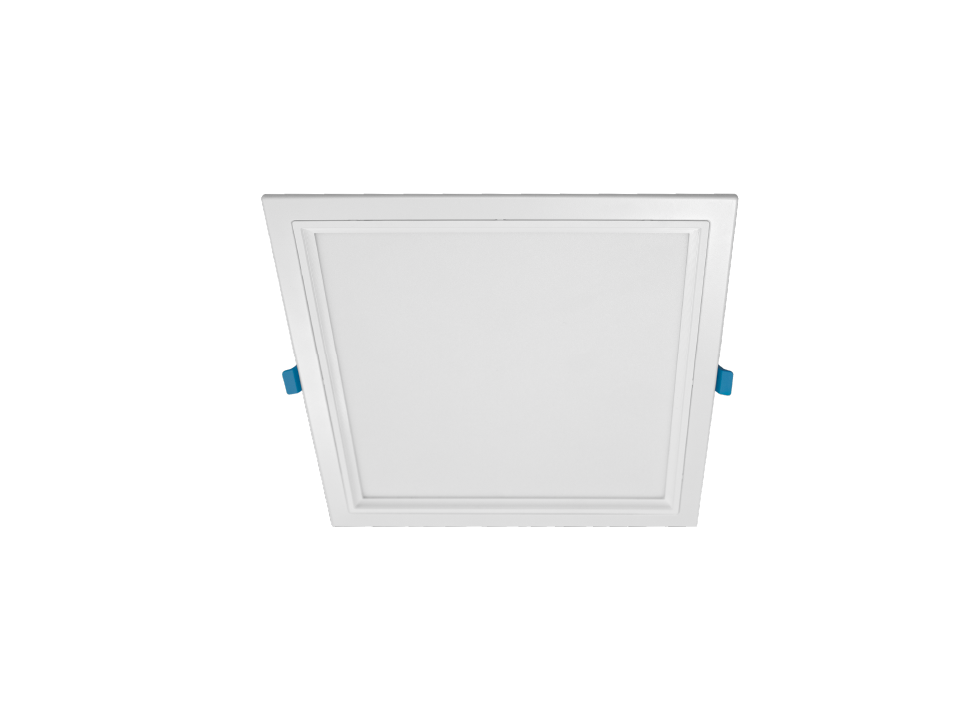

KENTAU AVANT SQ 20W 830 220-240V GR9006
629270
Applications
Classrooms
Offices
Halls
Home
Hotels
Restaurants
Retail
SKU data sheet
Model data sheet
Model photometry
| 629270 | 20 | 3000K | 205X205 | 225x225x50 | NO |
Features
Assembly
Download
Under request
Features
Electrical data
Voltage (V) |
230V |
Dimming |
NO |
Dimensions and Mounting
Weight |
0.376Kg |
Measures |
225x225x50mm |
Mounting position |
EMPOTRADO TECHO |
Linkable |
NO |
Optical data
Colour temperature |
3000K |
CRI Colour rendering index |
80 |
Opening angle |
100 |
Housing and Finish
IP Tightness index |
IP20 |
Current (A) |
IP40 |
Body |
AL |
Performance
Flux (lm) |
2197lm |
Life
Lifetime |
(L70B50>)50.000h |
Funcionament condition
Operating temperature |
40 |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCII |
Assembly
Dimensions and Mounting
Weight |
0.376Kg |
Measures |
225x225x50mm |
Mounting position |
EMPOTRADO TECHO |
Linkable |
NO |
Download
Under request
Emergency kit 2hBajo el campo de configuración se añade solo este texto en los 4 idiomas definidos
Dali
