> Family NANTES

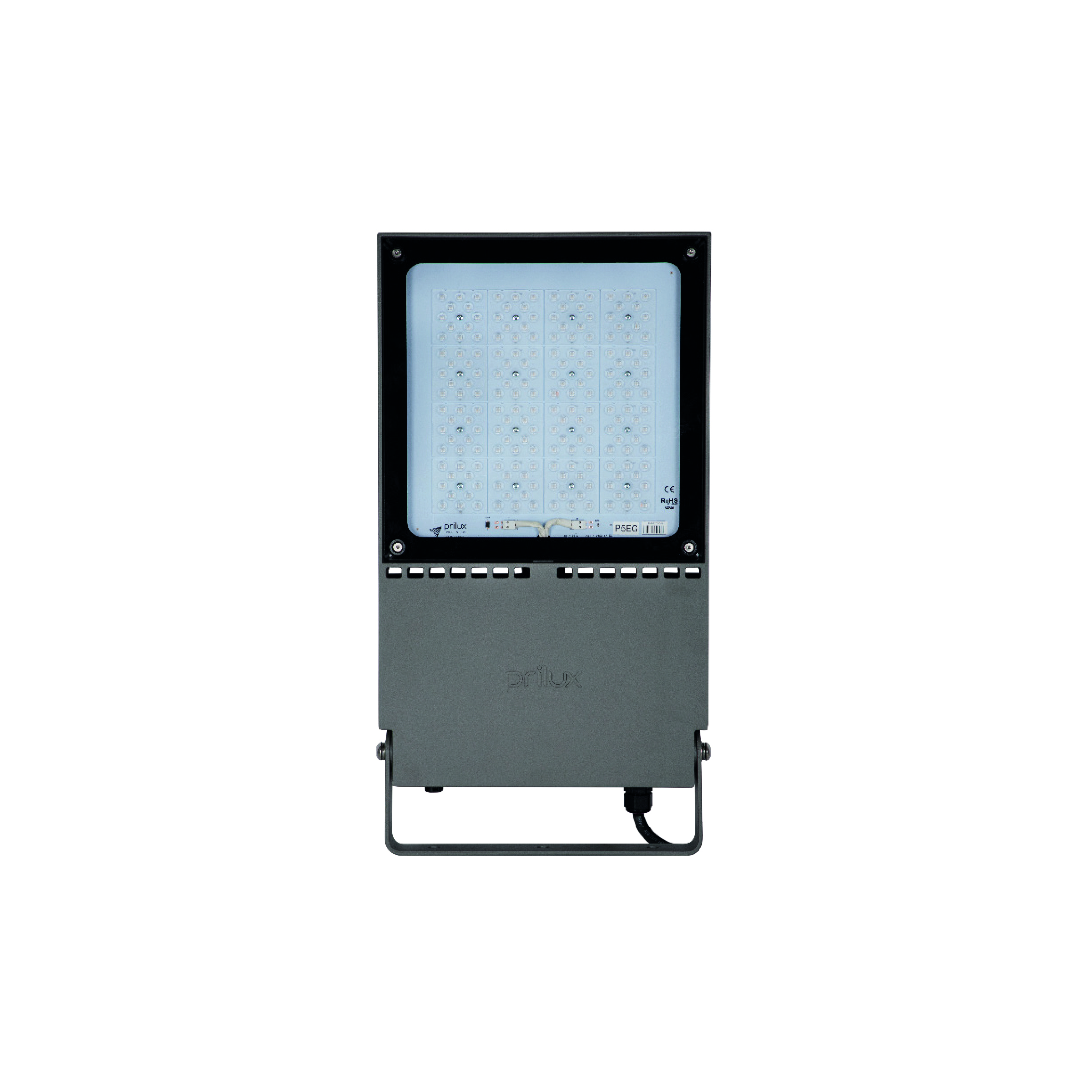

NANTES PLAY 108LED 35W/38WT 730 VA11I2P DA CMR
643061
Applications
Facades
Industrial perimeters
Car parks
Sports grounds
Monuments
Industrial Zones
SKU data sheet
SKU photometry
Model data sheet
Model photometry
| 643061 | 35 | 38 | 350 | 7593 | 7484 | 5763 | 152 | 108 | VA11I2P | YES |
Features
Assembly
Download
Features
Electrical data
Voltage (V) |
220-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
350mA |
Power factor (Cos fi) |
0,93 |
LED number |
108 |
Dimming |
YES |
Dimensions and Mounting
Wind Resistance |
0,11m2 |
Measures |
500x250x55mm |
Mounting position |
Montaje en Lira |
Linkable |
NO |
Optical data
Colour temperature |
3000K |
CRI Colour rendering index |
70 |
Optical |
VA11I2P |
Housing and Finish
IK Impact resistance |
IK09 |
IP Tightness index |
IP66 |
Body color |
9007 |
Body |
AL iap |
Performance
Flux (lm) |
5763lm |
Life
Lifetime |
L70B10>100.000h |
Lifetime |
L70B10> 100.000h |
Funcionament condition
Operating temperature |
50 |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCI |
Assembly
Dimensions and Mounting
Wind Resistance |
0,11m2 |
Measures |
500x250x55mm |
Mounting position |
Montaje en Lira |
Linkable |
NO |
