> Family KOBE

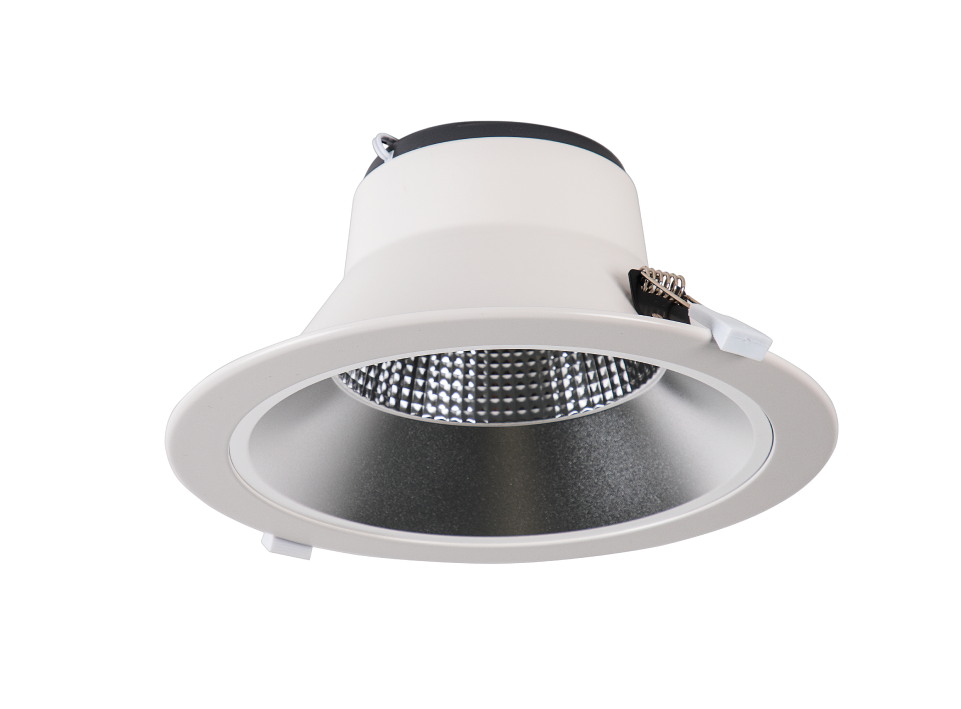

KOBE SWITCH CCT 830-840 15W 230V UGR <19 IP20
492652
Applications
Offices
Classrooms
Retail
Home
Large surfaces
Hotels
Restaurants
Health care
SKU data sheet
Model data sheet
| 492652 | 12 | 15 | 700 | 1.427/1.561 | 1.182/1.249 | 50 | 3.000K/4.000K | AL-AN | Blanco | NO | Ø120 -130 | Ø145×81,8 |
Features
Assembly
Download
Under request
Features
Electrical data
Voltage (V) |
220-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
700mA |
Dimming |
NO |

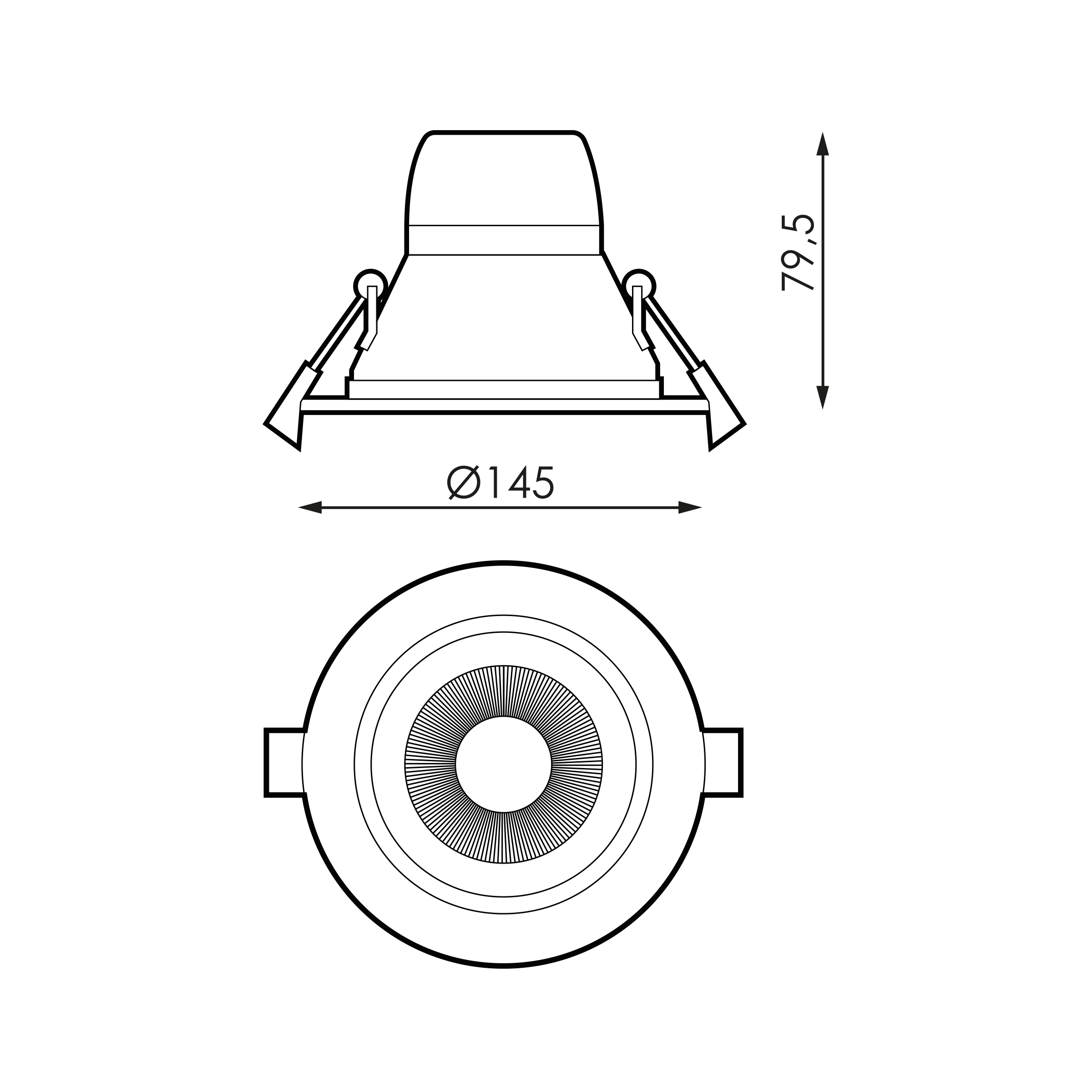

Dimensions and Mounting
Measures |
Ø145×81,8mm |
Mounting position |
Empotrar |
Linkable |
NO |
Lighting |
Directa |
Optical data
Colour temperature |
3.000K/4.000K |
CRI Colour rendering index |
>80 |
Opening angle |
50 |
UGR |
UGR <19 |
Housing and Finish
IP Tightness index |
IP20 |
Body color |
White |
Body |
AL |
Performance
Flux (lm) |
1.182/1.249lm |
Life
Lifetime |
L70>40.000h |
Protections
Surges protection |
YES |
General data
Electrical isolation |
CII |
Assembly
Dimensions and Mounting
Measures |
Ø145×81,8mm |
Mounting position |
Empotrar |
Linkable |
NO |
Lighting |
Directa |
Download
Under request
Dali
Bluetooth
Emergency kit
