> Family LYNX LED

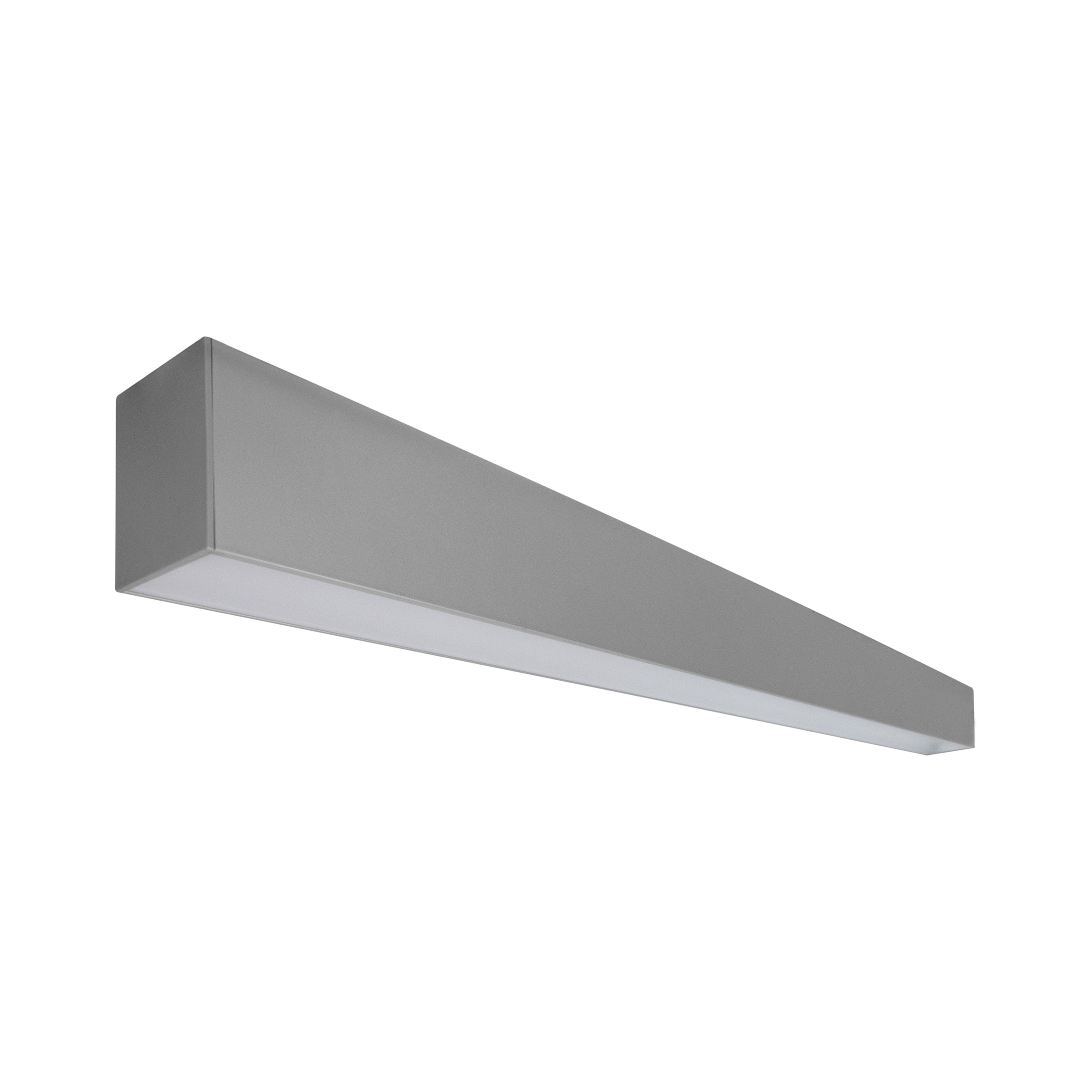

LYNX DI 1X37W 840 IND
538145
Applications
Offices
Classrooms
Retail
Home
Large surfaces
Hotels
Restaurants
Health care
SKU data sheet
Model data sheet
| 538145 | 37 | 40 | 390 | 0,93 | 4.930 | 3.000 | 90 | 4.000K | PC-O | 9006 | NO/NON/NÃO | 1.414x60x80 |
Features
Assembly
Download
Under request
Features
Electrical data
Voltage (V) |
220-240V |
Frecuency (Hz) |
50-60Hz |
Current (mA) |
390mA |
Power factor (Cos fi) |
0,93 |
LED number |
90 |
Dimming |
No |
Dimensions and Mounting
Mounting |
207638,537933,538237,538244 |
Measures |
1.414x60x80mm |
Mounting position |
Superficie/Suspendido |
Linkable |
No |
Lighting |
Directa |
Optical data
Colour temperature |
4.000K |
CRI Colour rendering index |
>80 |
Housing and Finish
IP Tightness index |
IP20 |
Body color |
9006 |
Body |
AL |
Performance
Flux (lm) |
3.000lm |
Life
Lifetime |
L70>50.000h |
Protections
Surges protection |
Yes |
General data
Electrical isolation |
CI |
Assembly
Dimensions and Mounting
Mounting |
207638,537933,538237,538244 |
Measures |
1.414x60x80mm |
Mounting position |
Superficie/Suspendido |
Linkable |
No |
Lighting |
Directa |
undefined
Download
Under request
Presence and brightness sensor (mod. 1x/2x 1.200mm/1.500mm)
Dali
Bluetooth
WAS(*Not compatible for 37W luminaires)
>80 3.000K
>80 4.000K
>80 4.000K
Available RAL colors (Consult)
