> Family AZIRA SWITCH S

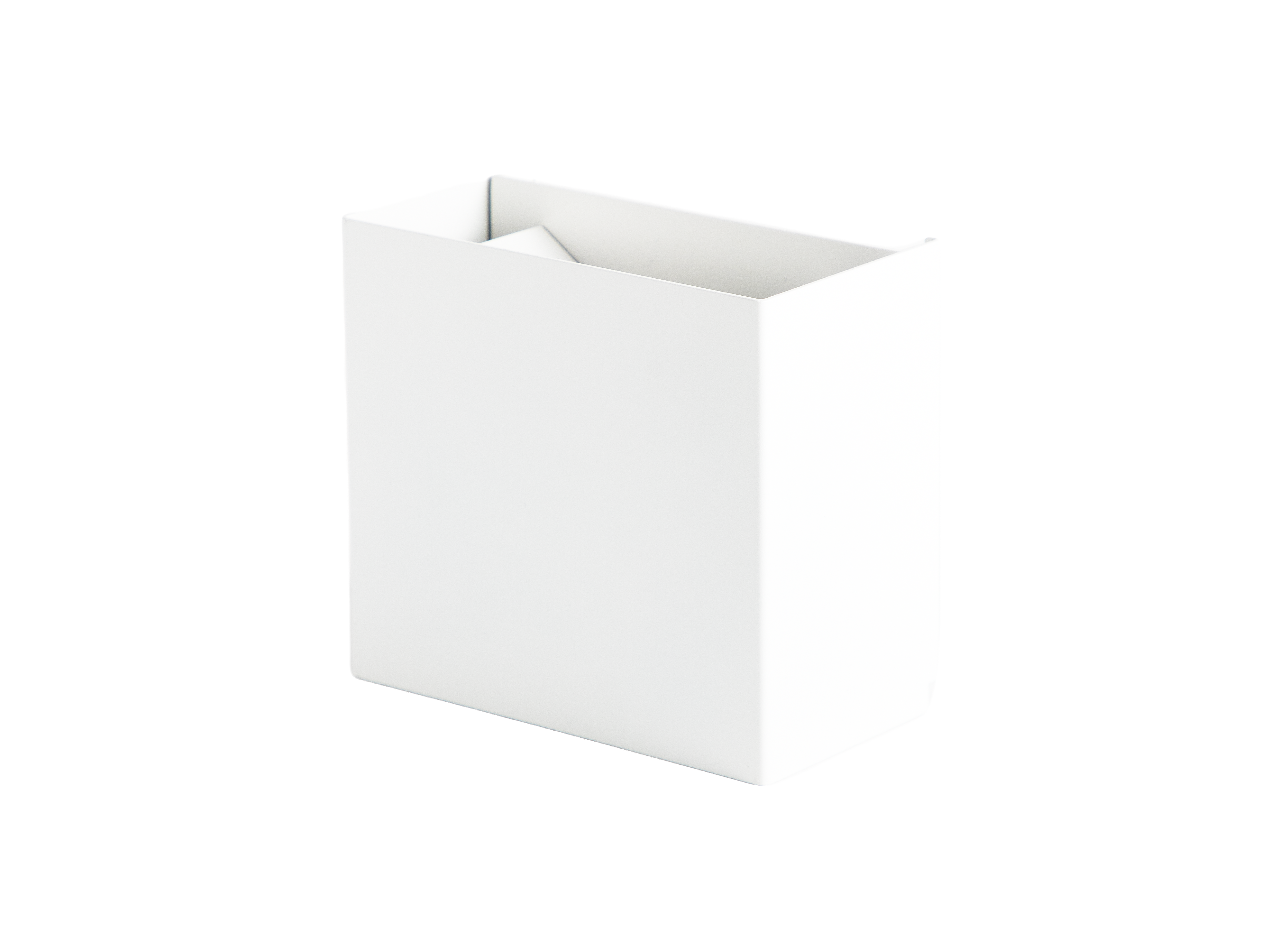

AZIRA S SWITCH 10W 830-840-850 IP65 R9003 BLANCO
662864
Applications
SKU data sheet
Model data sheet
| 662864 | 10 | 842-862-885 | 3000K-4000K-5000K | 9003 | 80 | (L70B50>)50.000h | 0-100º | 121×62.5×108 |
Features
Assembly
Download
Features
Electrical data
Frecuency (Hz) |
50/60Hz |
Current (mA) |
180mA |
Power factor (Cos fi) |
≥0,9 |
Dimming |
NO |
Sensor |
NO |
Dimensions and Mounting
Weight |
0.6Kg |
Measures |
121×62.5x108mm |
Mounting position |
SUPERFICIE PARED |
Linkable |
NO |
Optical data
Colour temperature |
3000K-4000K-5000K |
CRI Colour rendering index |
80 |
Opening angle |
0-100º |
Housing and Finish
IK Impact resistance |
IK06 |
IP Tightness index |
IP65 |
Body color |
9003 |
Body |
AL-FE |
Performance
Flux (lm) |
842-862-885lm |
Life
Lifetime |
(L70B50>)50.000h |
Nº of ignitions |
25000 |
Protections
Surges protection |
NO |
General data
Electrical isolation |
CCI |
Assembly
Dimensions and Mounting
Weight |
0.6Kg |
Measures |
121×62.5x108mm |
Mounting position |
SUPERFICIE PARED |
Linkable |
NO |
