Versa

Urban lighting with a compact, elegant and versatile design to illuminate the entire city

Versa’s more than 16 photometric distribution options respond to the requirements of any lighting projects for streets, roads, motorways, bike paths, parks, playgrounds and bridges.

IP66

IK08/ Versa XL IK07

L90B10> 200.000h

-40~+35ºC / -40~+50 ºC (12LEDs)

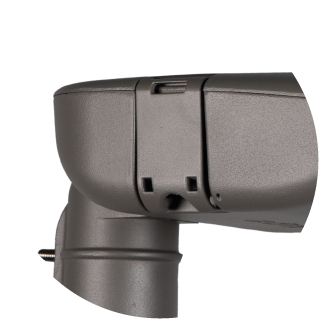

Pressure valve

Versa luminaires are equipped with a pressure leveling valve that keeps the exterior and interior pressures balanced, avoiding the formation of moisture.

Maintenance with minimal tools

Maintenance operations are very easy to perform thanks to a simple design that makes its components very easy to access.

Service Life

Versa ensures optimal thermal management and maximum component life.

Applications

Motorways

Roads

Cycle lanes

Parks

Pedestrian Zones

Residential Areas

Industrial perimeters

Car parks

Models Versa

Versa

Versa L

Versa XL

Versa

	SKU	W	Flow	CCT	See
VERSA 12L 12/13,3W 730 VA00K0M 8N DA CMR	570039	13,3	1742	3.000K	See +
VERSA 12L 12/13,3W 740 VA00K0M 8N DA CMR	570046	13,3	1.801	4.000K	See +
VERSA 12L 18/18,8W 730 VA00K0M 8N DA CMR	570053	18,8	2411	3.000K	See +
VERSA 12L 18/18,8W 740 VA00K0M 8N DA CMR	570060	18,8	2.493	4.000K	See +
VERSA 12L 24/26,5W 730 VA00K0M 8N DA CMR	570145	26,5	3230	3.000K	See +
VERSA 12L 24/26,5W 740 VA00K0M 8N DA CMR	570152	26,5	3.339	4.000K	See +
VERSA 12L 36/38,8W 730 VA00K0M 8N DA CMR	570169	38,8	4365	3.000K	See +

1 2 3

Versa L

	SKU	W	Flow	CCT	See
VERSA L 48L 128/134,6W 730 VA00K0M 8N DA CMR	569965	134,6	16.523	3.000K	See +
VERSA L 48L 128/134,6W 740 VA00K0M 8N DA CMR	569910	134,6	17.292	4.000K	See +
VERSA L 48L 144/146,7W 730 VA00I0P 8N DA CMR	569972	146,7	17.860	3.000K	See +
VERSA L 48L 144/146,7W 740 VA00I0P 8N DA CMR	569927	146,7	18.690	4.000K	See +
VERSA L 48L 48/50,4W 730 VA00K0M 8N DA CMR	569934	50,4	7.527	3.000K	See +
VERSA L 48L 48/50.4W 740 VA00K0M 8N DA CMR	569880	50,4	7.877	4.000K	See +
VERSA L 48L 72/73,0W 730 VA00K0M 8N DA CMR	569941	73	10.308	3.000K	See +

1 2

Versa XL

	SKU	W	Flow	CCT	See
VERSA XL 64L 128/135,1W 730 VA00K0M 8N DA CMR	574228	134	18.195	3.000K	See +
VERSA XL 64L 128/135,1W 740 VA00K0M 8N DA CMR	574105	134	19.042	4.000K	See +
VERSA XL 64L 150/152,8W 730 VA00K0M 8N DA CMR	574235	154	20.206	3.000K	See +
VERSA XL 64L 150/152,8W 740 VA00K0M 8N DA CMR	574112	154	21.146	4.000K	See +
VERSA XL 64L 170/175,1W 730 VA00I0P 8N DA CMR	574242	174	22.537	3.000K	See +
VERSA XL 64L 170/175,1W 740 VA00I0P 8N DA CMR	574129	174	23.585	4.000K	See +
VERSA XL 64L 192/195,0W 730 VA00I0P 8N DA CMR	574259	194	24.264	3.000K	See +
