G.O. UNIVERSAL

Adaptable light fitting for classic street lights

The universal light fitting enables LED adaptation for villa-type street lights. Its scope of application includes urban and industrial areas, roads, motorways, public transport stations, bike paths, streets, squares and parks.

IP66/IP67

IK10/IK09

L90B10> 200.000h

-40~+50ºC (12/24Leds)

-40~+45ºC (32Leds)

Universality

Light fittings that can be adapted to most of the existing villa-type street lights in existing installations.

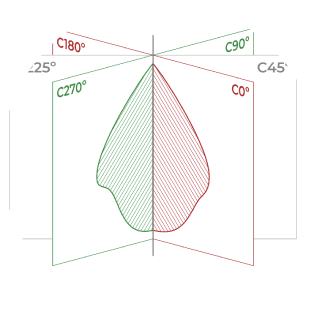

Photometry options to suit every need

Can be adapted to any installation and lighting project thanks to the 19 photometric distribution options available

Easy installation

It is specially designed to facilitate installation, connection and maintenance of the existing light installation.

Resistance

Glass or polycarbonate enclosures guarantee maximum resistance to collisions and adverse conditions.

Applications

Roads

Motorways

Parks

Viaducts

Residential Areas

Tunnels

Pedestrian Zones

Car parks

Models G.O. UNIVERSAL

Grupo Óptico 12Leds

Grupo Óptico 24Leds

Grupo Óptico 32Leds

Grupo Óptico 12Leds

	SKU	W	Flow	CCT	See
G.O. 12L 12/13,3W 730 VA00L1P 8N DA CMR	570909	13,3	1.847	3.000K	See +
G.O. 12L 12/13.3W 740 VA00L1P 8N DA CMR	570893	13,3	1.910	4.000K	See +
G.O. 12L 18/18,8W 730 VA00L1P 8N DA CMR	570930	18,8	2.540	3.000K	See +
G.O. 12L 18/18,8W 740 VA00L1P 8N DA CMR	570923	18,8	2.627	4.000K	See +
G.O. 12L 24/26,5W 730 VA00L1P 8N DA CMR	570954	26,5	3.399	3.000K	See +
G.O. 12L 24/26,5W 740 VA00L1P 8N DA CMR	570947	26,5	3.516	4.000K	See +
G.O. 12L 36/38,8W 730 VA00L1P 8N DA CMR	570978	38,8	4.574	3.000K	See +

1 2

Grupo Óptico 24Leds

Product		SKU	W	Flow	CCT	Data sheet	Photometric curve	See
	G.O. 24L 48/51,7W 730 VA00L1P 8N DA CMR	570992	51,7	6.996	3.000K			See +
	G.O. 24L 48/51,7W 740 VA00L1P 8N DA CMR	570985	51,7	3.399	4.000K			See +

Grupo Óptico 32Leds

	SKU	W	Flow	CCT	See
G.O. 32L 32/35,9W 730 VA00K0M 8N DA CMR	571029	35,9	4406	3.000K	See +
G.O. 32L 32/35,9W 740 VA00K0M 8N DA CMR	571012	35,9	3.516	4.000K	See +
G.O. 32L 48/50,5W 730 VA00K0M 8N DA CMR	571043	50,5	6.996	3.000K	See +
G.O. 32L 48/50,5W 740 VA00K0M 8N DA CMR	571036	50,5	7.321	4.000K	See +
G.O. 32L 64/70,2W 730 VA00K0M 8N DA CMR	571067	70,2	7.831	3.000K	See +
G.O. 32L 64/70,2W 740 VA00K0M 8N DA CMR	571050	70,2	8.100	4.000K	See +
G.O. 32L 75/80,4W 730 VA00K0M 8N DA CMR	571081	80,4	8.756	3.000K	See +
